Access points – a practical guide to choice and overview
Access points – a practical guide to choice and overview
An access point can be the key to a more stable and extensive wireless network at home. Where the router often has limited range, access points can extend the signal so that you get a reliable connection in every room – even in the basement, garden or attic.
In this article, you’ll get an overview of what to consider when choosing an access point, what types are available and which manufacturers are worth knowing about.
The article presents a wide selection of access points from different manufacturers and price ranges. The aim is to provide an informative overview of features, specifications and areas of use so that you can more easily find the solution that suits your home network. The information is based on publicly available product descriptions and technical data from manufacturers and retailers.
Factors to consider when buying an access point
When choosing an access point, there are several technical and practical factors that affect performance, range and user-friendliness.
1. Speed and standards
Most modern access points support Wi-Fi 5 (802.11ac) or Wi-Fi 6 (802.11ax). Wi-Fi 6 offers higher speeds, better handling of multiple devices and lower latency. If you have many smart devices or stream in high resolution, it may be worth choosing Wi-Fi 6.
2. Coverage area and antennas
The number and type of antennas affect the range. Access points with external, adjustable antennas often provide a better signal in larger homes. Consider how many square metres you need to cover and whether walls or floors may weaken the signal.
3. Power supply and installation

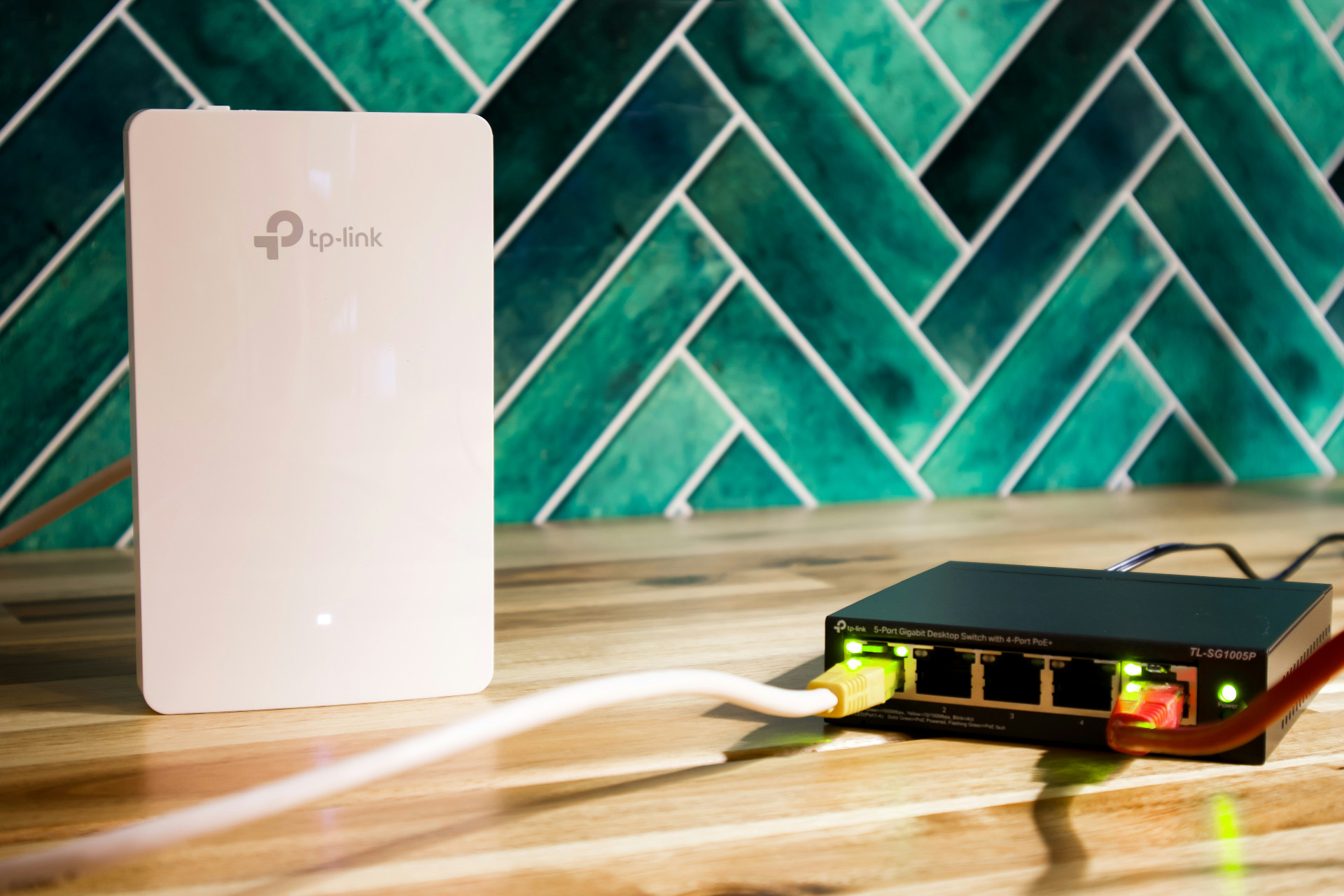

Some access points are powered via PoE (Power over Ethernet), which means they only require one network cable for both data and power. This makes installation easier and more flexible, especially if you want to mount the device on the ceiling or wall.
4. Dual-band and tri-band
A dual-band access point transmits on both 2.4 GHz and 5 GHz, while tri-band adds an extra 5 GHz band. More bands mean less congestion and higher total capacity – an advantage in homes with many active devices.
5. Management and security
Many access points can be managed via an app or a web interface where you can monitor traffic, create guest networks and update firmware. Make sure the device supports modern security standards such as WPA3 to protect your network.
6. Price and scalability
The price depends on features and performance. In smaller homes, a single access point may be sufficient, while larger homes or properties can benefit from a system with multiple units working together in a mesh network.
Products in focus
Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to deliver fast and stable Wi-Fi coverage in larger network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, providing flexibility and high total bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and stable connectivity.
The units can be centrally managed via Ubiquiti's UniFi Controller software, which enables monitoring, configuration, and scaling of the network. The design is discreet and can be mounted both on walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the units support PoE+ power supply via network cable. The low power consumption and wide operating temperature range make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Central management: Compatible with UniFi Controller for easy installation and control.
- Flexible mounting: Can be installed on walls or ceilings and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per package: 5 (specifications apply to individual unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are crucial. It supports the AirMax protocol, enabling efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and has 64 MB RAM and 8 MB flash memory, providing stable and fast operation. It is equipped with two RP-SMA antenna ports and a 100Base-TX RJ-45 port for network connection.
Rocket M365 is designed for pole mounting and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), making installation easier by combining power and data in one cable.
With a power consumption of 6.5 watts and a frequency band of 3.65 GHz, the device is suitable for professional wireless networks where reliable connectivity and flexible installation are required.
- Outdoor design: Robust construction for installation in demanding environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in one cable.
- Flexible mounting: Can be pole-mounted for optimal placement and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data transfer protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interfaces: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to deliver stable and fast wireless connectivity in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can achieve speeds of up to 800 Mbps and 1733 Mbps respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has built-in antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, providing flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Provides high capacity and efficient data management.
- Advanced security: Includes WIPS and supports multiple encryption methods.
- Flexible installation: Can be mounted on wall or ceiling and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standards: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (17 W consumption)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to deliver fast and stable wireless connectivity on the 5 GHz band. The unit is built to withstand demanding environments and is therefore suitable for installations where reliability and signal strength are important.
The interchangeable antenna horn makes it possible to focus the signal in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The unit is powered via Power over Ethernet (PoE), which simplifies installation as both power and data are transmitted through the same cable. It supports a data rate of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC gives network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data rate and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Interchangeable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data via one cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data connection protocol: AirMax ac
- Frequency band: 5 GHz
- Data rate: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), 10 W consumption
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is an enterprise-class access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and delivers up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant housing makes it suitable for wall or pole mounting, and the built-in omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or the included Gigabit PoE adapter.
The access point is centrally managed through the UniFi Controller software or via UniFi Cloud Key, enabling unified management of multiple devices, traffic monitoring and guest network configuration.
The UAP-AC-M-PRO comes with mounting brackets, PoE adapter and necessary accessories so that installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1750 Mbps total speed.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Provides high capacity and stable connection for multiple users.
- Central management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: External, outdoor
- Data connection protocol: IEEE 802.11a/b/g/n/ac
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), 9 W consumption
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included equipment: PoE injector, mounting brackets, pole mount, screws
Product descriptions
Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to deliver fast and stable Wi-Fi coverage in larger network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, providing flexibility and high total bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and stable connectivity.
The units can be centrally managed via Ubiquiti's UniFi Controller software, which enables monitoring, configuration, and scaling of the network. The design is discreet and can be mounted both on walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the units support PoE+ power supply via network cable. The low power consumption and wide operating temperature range make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Central management: Compatible with UniFi Controller for easy installation and control.
- Flexible mounting: Can be installed on walls or ceilings and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per package: 5 (specifications apply to individual unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are crucial. It supports the AirMax protocol, enabling efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and has 64 MB RAM and 8 MB flash memory, providing stable and fast operation. It is equipped with two RP-SMA antenna ports and a 100Base-TX RJ-45 port for network connection.
Rocket M365 is designed for pole mounting and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), making installation easier by combining power and data in one cable.
With a power consumption of 6.5 watts and a frequency band of 3.65 GHz, the device is suitable for professional wireless networks where reliable connectivity and flexible installation are required.
- Outdoor design: Robust construction for installation in demanding environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in one cable.
- Flexible mounting: Can be pole-mounted for optimal placement and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data transfer protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interfaces: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to deliver stable and fast wireless connectivity in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can achieve speeds of up to 800 Mbps and 1733 Mbps respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has built-in antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, providing flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Provides high capacity and efficient data management.
- Advanced security: Includes WIPS and supports multiple encryption methods.
- Flexible installation: Can be mounted on wall or ceiling and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standards: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (17 W consumption)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to deliver fast and stable wireless connectivity on the 5 GHz band. The unit is built to withstand demanding environments and is therefore suitable for installations where reliability and signal strength are important.
The interchangeable antenna horn makes it possible to focus the signal in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The unit is powered via Power over Ethernet (PoE), which simplifies installation as both power and data are transmitted through the same cable. It supports a data rate of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC gives network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data rate and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Interchangeable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data via one cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data connection protocol: AirMax ac
- Frequency band: 5 GHz
- Data rate: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), 10 W consumption
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is an enterprise-class access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and delivers up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant housing makes it suitable for wall or pole mounting, and the built-in omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or the included Gigabit PoE adapter.
The access point is centrally managed through the UniFi Controller software or via UniFi Cloud Key, enabling unified management of multiple devices, traffic monitoring and guest network configuration.
The UAP-AC-M-PRO comes with mounting brackets, PoE adapter and necessary accessories so that installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1750 Mbps total speed.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Provides high capacity and stable connection for multiple users.
- Central management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: External, outdoor
- Data connection protocol: IEEE 802.11a/b/g/n/ac
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), 9 W consumption
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included equipment: PoE injector, mounting brackets, pole mount, screws
Different types of access points
Access points come in several variants, each with its own advantages depending on needs and type of home.
1. Standard access points
These models connect directly to the router via cable and extend Wi-Fi coverage in a specific area. They are ideal for homes where the signal only needs to be improved in a few rooms.
2. Mesh access points
A mesh system consists of several access points that work together as a single network. It provides seamless coverage without interruptions as you move around the home. Mesh solutions are particularly suitable for larger homes or houses with multiple floors.
3. Outdoor access points
Outdoor models are built to withstand weather conditions and are used to extend Wi-Fi to the garden, terrace or garage. They often have higher transmission power and a robust casing.
4. Enterprise access points
These are intended for businesses or large properties but can also be used in advanced home networks. They offer central management, high capacity and the ability to handle many simultaneous users.
Different brands of access points
The market for access points is broad, and several manufacturers have specialised in different segments.
Ubiquiti
Ubiquiti is known for its UniFi products that combine high performance with professional management. They target both private enthusiasts and businesses that want full control over their network.
TP-Link
TP-Link offers a wide range of both traditional and mesh-based access points. The brand is popular for its user-friendliness and good price-to-performance ratio.
Netgear
Netgear manufactures both home and business solutions. The Orbi series is among the best-known mesh systems on the market, while the Pro series targets more technically demanding users.
ASUS
ASUS combines high performance with gaming features and advanced network management. Their access points and routers are often equipped with powerful antennas and modern Wi-Fi standards.
D-Link
D-Link provides affordable access points focusing on easy installation and stable operation. They offer both indoor and outdoor models to suit different needs.
Frequently asked questions
What is the difference between a router and an access point?
A router distributes the internet connection to multiple devices and usually creates a wireless network. An access point extends this network so that you get better coverage in areas where the router’s signal is weak.
How many access points do I need?
It depends on the size and construction of the home. One access point can cover 50–100 m², but in larger homes or houses with thick walls, several units may be necessary for full coverage.
Can I use an access point with my existing router?
Yes, most access points can easily be connected to an existing router via a network cable. In this way, you simply extend your current network without having to replace the router.
What does PoE mean?
PoE stands for Power over Ethernet and means that the access point receives power through the network cable. This makes installation easier since you don’t need a separate power adapter.
How do I protect my wireless network?
Always use strong passwords and enable the latest security standard (WPA3 if possible). Keep the firmware updated and avoid sharing your primary network with guests – instead, create a separate guest network.
Læs også:
